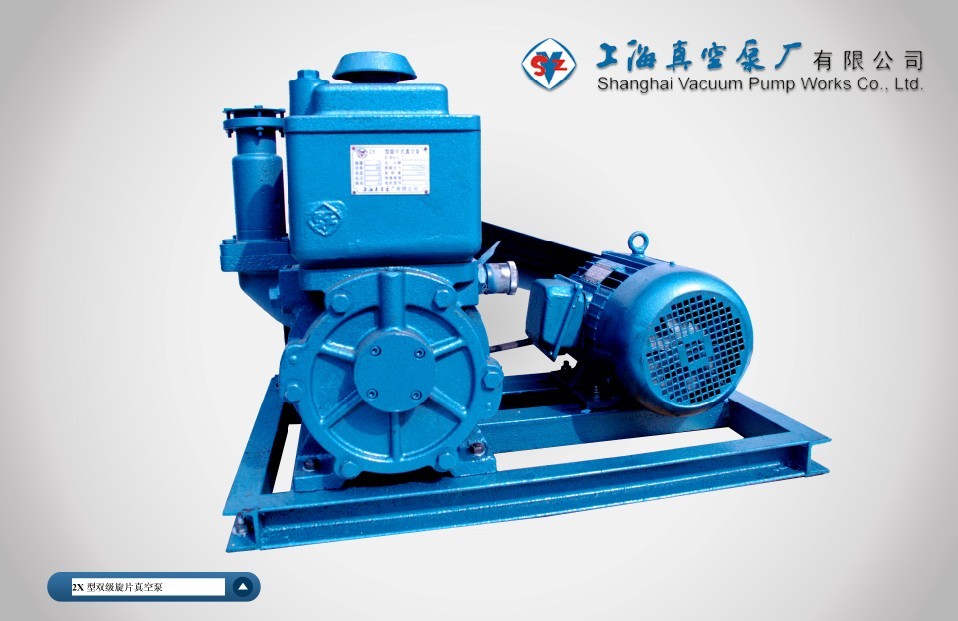

2X型旋片真空

应用:
Applications:

▲    可单独使用,也可作为前级泵。
can be used alone, and also can be used as prepump.

▲    可用于真空冶炼、真空焊接、真空浇注、真空干燥、化工制药、电真空器件等工业。
Can be use in the indusries such as vacuum metallurgy, vacuum welding, vacuum casting, vacuum drying, chemical and pharmaceutical, electric vacuum devices.

▲    可在环境温度5℃-40℃范围内和进口压强小于1330Pa的条件下,允许长时间连续工作。
Long continuous work is enabled under the conditions of environmental temperature 5℃-40℃ and inlet pressure less then 1330 Pa.

▲    不能抽除含氧过高、有毒的、有爆炸性的、有腐蚀性的、对泵油起化学反应的、含有颗粒尘埃的气体,也不能用作传输泵使用。
Can not be used to extract high oxygen, toxic, explosive, corrosive, chemical reaction responding to pump oil and dust contained gases or used as delivery pump.

▲    在6650Pa到大气压的进口压强下连续工作时间,不得超过3min
The time of continuous work under the inlet pressure of 6650Pa to high atmospheric pressure can be no more than 3 minutes.



规格参数:Main specifications

型号Model
2X—4C
2X—8
2X—15
2X—30A
2X—70A
备注 Remarks
抽气速率Pumping speed L/s
4
8
15
30
70

极限压力Ultimate pressure ≤Pa
气镇关Without gas ballast
≤ 6×10-2
用座式压缩式水银真空计在泵口测量。
With a Mcleod gauge
气镇开With gas ballast

≤6×10-1
≤1.33
极限全压强 Ultimate total pressure Pa
≤1
~6×10-1
用热偶计,电阻计等全压强计计量。

电机功率 Motor power  kw
0.55
1.1
2.2
3
5.5
泵温升 Temperature arise ℃
≤40
噪声 Lp/Lw dB(A
≤75
≤78
≤80
≤82
≤86

进气口径Diaof  inlet mm
25
40
40
65
80
转速 Speed r.p.m
450
320
450
420
用油量 Oil capacity  L
1.0
2.0
2.8
2.0
4.2
外型尺寸Overall dimensions cm(L×B×H)
49×31×41
79×43×54
79×53×54
78×50×56
91×65×70
适用电磁阀 Suitable electro-magnetic valve
DDC-JQ25
DDC-JQ40
DDC-JQ65
DDC-JQ80
重量Weight  kg
59
129
168
194
343
冷却水量 Cooling water L/min
-
-
-
